How to Set Up UltraXtend WiFi Range Extender – Complete Guide

A WiFi range extender like the UltraXtend can eliminate dead zones in your home or office by boosting your existing wireless signal. If you’re struggling with slow or spotty WiFi, this step-by-step guide will help you UltraXtend wifi booster Setup quickly and efficiently.

Unbox UltraXtend Wifi Singal booster

Before starting, ensure you have unbox the Ultraxtend range extender. Inside the box you will find item as give below.
✔ UltraXtend WiFi Range Extender
✔ Quick Start Guide (optional, as this guide covers everything)
✔ Ethernet Cable (for wired setup, if needed)

• Macard Wifi Extender Setup Manual & Two Methods

How to Set Up UltraXtend Extender Using WPS Button?

Before You Begin:

✔ Ensure your router has a WPS button (most modern routers do).
✔ Place the extender within range of your router during setup (you can move it later).

Step-by-Step Ultraxtend WiFi Booster Setup  Using WPS button

1. Plug in the Extender

• Connect the UltraXtend extender to a power outlet near your router.
• Wait for the Power LED to turn solid (may take 30-60 seconds).

3. Press the WPS Button on Your Router

• Locate the WPS button on your router, press the WPS button on your router for 2 seconds.

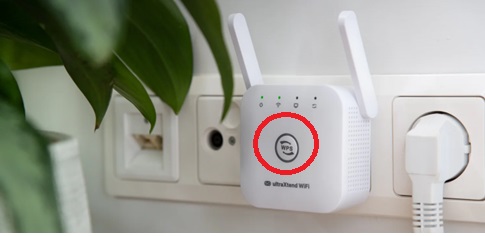

• Locate the WPS button on your extender (usually on the side or front).

2. Within 2 minutes Press the WPS Button on the Extender for 2seconds.

• WPS LED starts blinking and take a few seconds to connect with your existing wifi network.

How to Fix WiFi Signal issue using Old WiFi Router

4. Wait for Connection

• The extender will automatically connect to your router’s WiFi.
• Once connected:
  • WPS LED will turn solid green.
  • Signal LED will show strength (2-3 bars = good connection).

5. Relocate the Extender

• Move the extender to your desired location (ideally halfway between router and dead zone).
• Check the Signal LED:
  • Green = Strong connection
  • Orange/Red = Weak signal (move closer to the router).

6. Connect Your Devices

• On your phone/laptop, go to WiFi settings.
• Look for the extended network (usually YourWiFiName_EXT).
• Connect using the same password as your main WiFi.

⚠️ Troubleshooting WPS Issues

❌ WPS LED not blinking?

• Ensure your router supports WPS (check manual).
• Try resetting the extender (hold reset button for 10 sec).

❌ Connection fails?

• Repeat Steps 2-3 within 2 minutes.
• Use the manual setup method (via ultraxtend.net).

❌ Weak signal after setup?

• Avoid obstructions (walls, appliances).
• Place the extender higher up (shelf/table).

How to Set Up UltraXtend Extender Using Web Login Method

• Fix WiFi Extender keeps Losing internet

Step 1: Plug in the Extender

1. Place the extender near your router during setup (you can move it later).
2. Connect it to a power outlet and wait for the Power LED to turn solid.
3. The Signal LED will blink, indicating it’s ready for setup.

Step 2: Connect to the Extender’s Network

1. On your phone, tablet, or laptop, go to WiFi settings.
2. Look for a network named “UltraXtend_Setup” (or similar).
3. Connect to it—no password is required at this stage.

Step 3: Access the Setup Page

1. Open a web browser (Chrome, Safari, Firefox, etc.).
2. In the address bar, type:
   • http://ultraxtend.net (recommended) OR
   • UltraXtend Extender default IP address 192.168.7.234
   • Use admin as default username and password for first time setup.
3. After login press Repeater button and wait while extender scanning for network.

Step 4: Configure WiFi Settings

1. The extender will scan for available networks.
2. Select your home WiFi from the list.
3. Enter your WiFi password (same as your router’s).
4. (Optional) Change the extended network name (e.g., add “_EXT” for clarity).
5. Click “Apply” or “Save” to confirm.

Step 5: Relocate the Extender

1. Unplug the extender and move it to your desired location.
   • Ideal spot: Midway between your router and the dead zone.
2. Check the Signal LED:
   • Solid green = Strong connection
   • Orange/Red = Weak signal (move closer to the router)

Step 6: Connect Your Devices

1. On your phone/laptop, go back to WiFi settings.
2. Look for your new extended network (e.g., “YourWiFi_EXT”).
3. Connect using the same password as your main WiFi.

How to access Wi-Fi repeater if forget password?

Troubleshooting Tips

Can’t access ultraxtend.net?

• Try 192.168.7.234 instead.
• Ensure you’re connected to “UltraXtend_Setup” WiFi.

Weak signal after setup?

• Move the extender closer to the router.
• Avoid placing it near microwaves, cordless phones, or thick walls.

Reset if needed:

• Press the reset button (hold for 10 seconds) and restart setup.

Ultraxtend WiFi Booster Setup  Final Checks

✔ Test internet speed in the extended area.
✔ Update firmware (if available) via the extender’s admin panel.
