How to Login Linksys Dual Band business AP

Login Linksys LAPAC1750 Business Access Point

Linksys LAPAC Dual-band access point is a business AP-supported cloud manager for centralizing management. There are many models available under the LAPAC series like LAPAC1200, LAPAC1750, LAPAC1750, LAPAC2600, and N300 Models as well. LAPAC dual-band wireless access point for enterprise wifi installation and cloud management lets you manage and monitor all AP from a single point. While using multiple Linksys access points should setup cloud managers to avoid the configuration of each AP one by one. Apart from cloud manager you can setup Linksys LAPAC1750 dual-band AP in standalone mode using manual configuration.

Login and setup LAPAC1200, AC1750, and other models are similar and a bit easy to configure from the web browser. You need to physically connect the Access point to the computer or desktop to access the web interface.

Linksys LAPAC1750 Business AP Connection

Linksys LAPAC series business access point supports Gigabit Ethernet PoE port and DC power socket.

How to access WiFi Router settings using WiFi and Wired?

Default Login Linksys LAPAC business AP settings

Setup without cloud manager required login settings to access the web interface.

Default Login IP address: 192.168.1.252

Login Username: admin

Default password: admin

How to Find Your Router IP Address

PC/Laptop LAN IP Address configuration

You need to configure the PC LAN IP to the static mode and use the Linksys default IP series.

Go to LAN IPv4 settings

Choose to use the following IP address

IP Address: 192.168.l.10

Subnet mask: 255.255.255.0

Save settings and proceed to log in to Linksys business cloud manager AP.

Login LAPAC1750 Dual Band AP

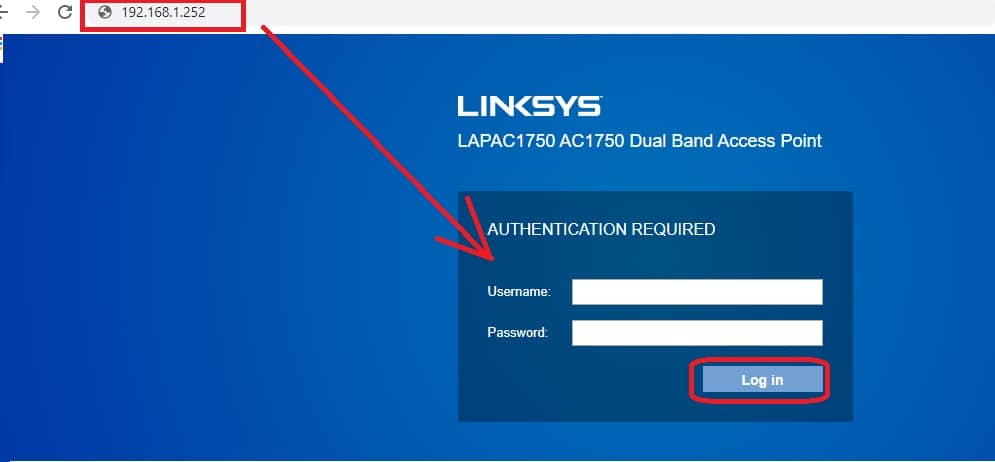

Once the physical connection and LAN IP configuration are done open a web browser and access http://192.168.1.252 to URL bar and press the enter key.

After a few seconds login windows load with username password options.

Use admin for username and password and press the login button.

192-168-1.252-1 login linksys AP

Once you are logged in to the access point control panel you can manage all settings and change WIFI name as well as password and other options.

Change WiFI SSID name and Password

In Dual-band wireless AP  two wifi networks are available. One is for the 2.4 GHz band and the second for 5.8 GHz.

The access point is configured with factory settings so before using it should change to secure the network from others.

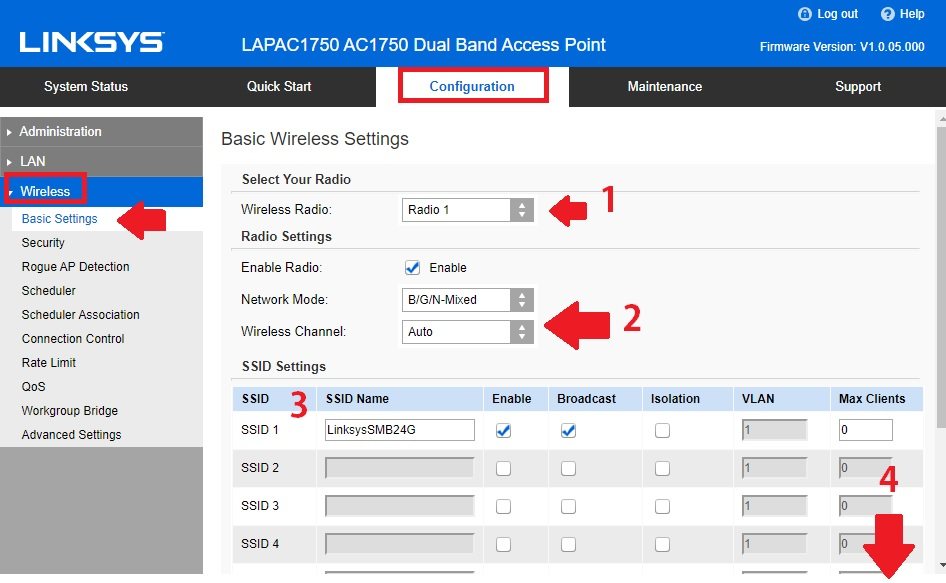

Go to configuration- Wireless-

 Basic settings

1: Wireless Radio: Radio 1 (In dual-band radio 1 and radio 2 are available. Choose radio 1 first to configure)

2: Network Mode: BGN Mixed

Wireless Channel: keep auto if using only one AP or use 1,6, 11 Channel numbers if using multiple AP in the same location.

3: SSID1: LinksysSMB2.4G (change SSID as per your choice)

4: Save: press the save button to confirm the configuration.

Linksys LAPAC1200 - Default login IP, default username

Select Radio 2 from the Wireless Radio option to configure the 5GHz band WiFi name.

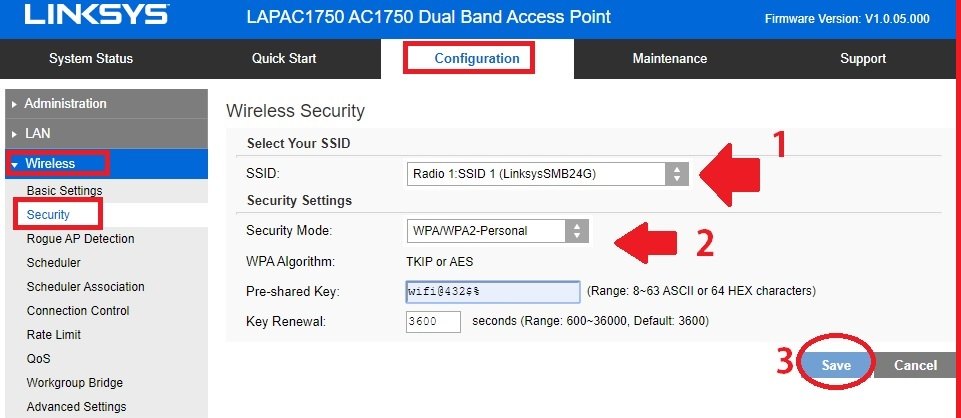

Wireless Password Configuration

By default Wireless password is open so you must set a strong password for your wireless AP.

Configuration- Wireless

Security

1: SSID: Radio 1 ( select Radio 1 and Radio 2 one by one to set a password for both bands)

2: Security Mode: WPA/WPA2-personal

Pre-Shared Key: set password for 2.4Ghz.

3: Save: save settings

How to Configure and Reset Linksys LAPAC1200 Router

Set Password for Radio 2 SSID and save settings.

After setting up wireless configuration your Access point is ready to run in networks.

Also recommended changing the login password before connecting AP to live networks.

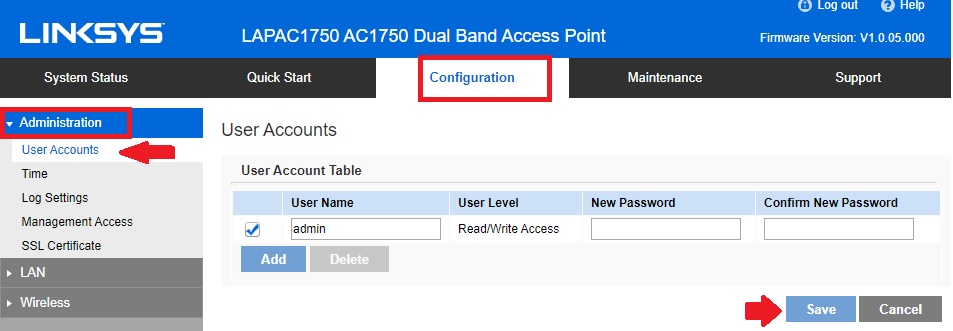

Change Linksys LAPAC750 AP Login Password

Change the AP login password to secure your home internet from unknown access.

Configuration- Administration

User Accounts

Username: admin

New Password: set a new password

Confirm new password: Confirm the new password to avoid mistakes.

Press the save button to confirm settings.

LAPAC1200 AC1200 Dual Band Access Point User Manual

Tips to Change Password

  • Use a strong password for login as well as access points.
  • Use Mix character and special character combinations.
  • Avoid using personal information for login as well as Wireless passwords that can easily be guessed.
  • Never use a mobile number, Phone number, and address as your password.

How to Factory reset TP-Link Range Extender

Final words

This user guide to setting up Linksys LAPAAC1750 dual-band AP also supported other LAP series models to use AP without a cloud manager. Always use cloud managers while using multiple access points in different locations to make easy management. You can set up other configurations like guess WiFi name, WiFi schedule timing, and other important features those useful for business wifi network security.
