TP-Link TL-WR840N Range Extender mode configuration

Setup TP-Link TL-WR840N Repeater mode to boost wifi signal in no coverage area using an old tp-link router.

TP-Link TL-WR840N Repeater mode configuration

Turn your TP Link TL-wr840n wifi router into range extender using simple steps.

TP-link WR840 is a small home wifi router with 1 Wan and 4 LAN port in V6. It is double external Omni antenna with 300Mbps wifi speed. TL-wr840n router can use Acess point, AP router as well as range extender mode as per requirement.

In this post, you can learn to setup tp-link range extender in tp-link n300 wifi router using simple steps. Range extender mode on of the best way to boost wifi signal without range extender device and turn tp-link n300 wi-fi range extender mode in same wifi router

Connection of  TL-WR840 N300 WiFi Router

To configure the TP-link router as repeater connect the physical with PC/laptop using a wired connection.

Power your TP Link WiFI router with adapter comes with box.

Connect Lan cable to PC/Laptop LAN from LAN port of the router.

TP-Link WR840n Default Settings

TP-Link TL-WR840n Default IP Address: 192.168.0.1

Default username: admin

Default login password: admin

Configure Laptop /PC LAN IP address to the same series of TP-Link IP address.

EXP: configure 192.168.0.10 in PC/Laptop Lan to access tp-link router web interface.

Login TP-Link TL-WR840N WiFi Router

Once all initial configuration is done now proceed to login router using web browser.

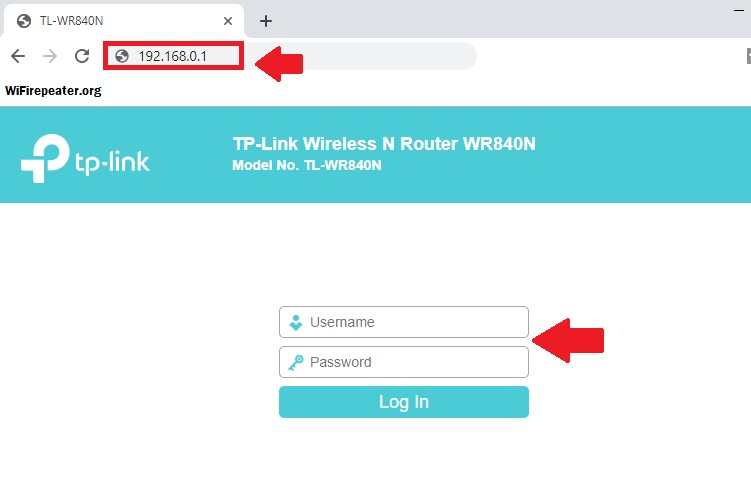

 Open Web browser and access “192.168.0.1”

Use admin/admin for login router first time.

Click Log in button

TP-link tl-wr841 range extender setup

TL-WR841 LAN IP Change

Before setup tl-wr841n router into repeater mode change the default IP address to avoid network conflict.

Most of the router comes with same default IP Address or if you are using main WiFi router also TP Link brand you must change LAN IP address of TL-WR840n wifi router.

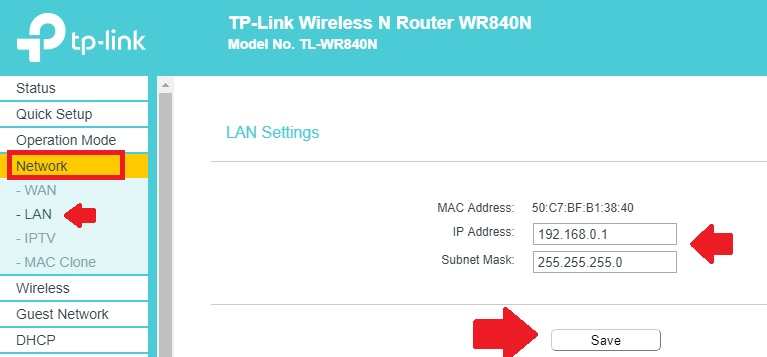

To change the default LAN IP go to Network – LAN

Change the different IP Address and subnet mask as shown in below image.

You can use the same series of host wifi router IP Address.

Exp: your main wifi router ip 192.168.1.1 use 192.168.1.100 in repeater device.

How to Configure the Range Extender/Repeater Mode

Click the Save button and re-login device with change IP address.



Setup Operation Mode to Range Extender in TP-Link

Now change wifi router mode to range extender mode to increase wifi signal in low coverage signal area.

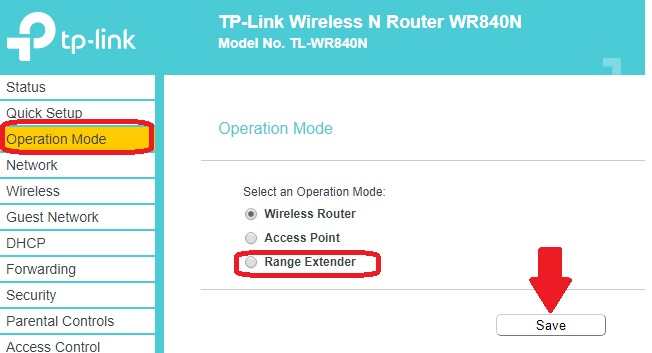

Go to Operation Mode option.

Select Range Extender mode and click save button.

Cara Setting Router TP-Link Multifungsi (TL-WR840N)

You will get confirmation pop-up to turn wireless router mode into range extender mode.

Click OK button to confirm and wait until device saving settings.

Connect Repeater to internet Router using WiFi

Now connect range extender router to main internet router wirelessly.

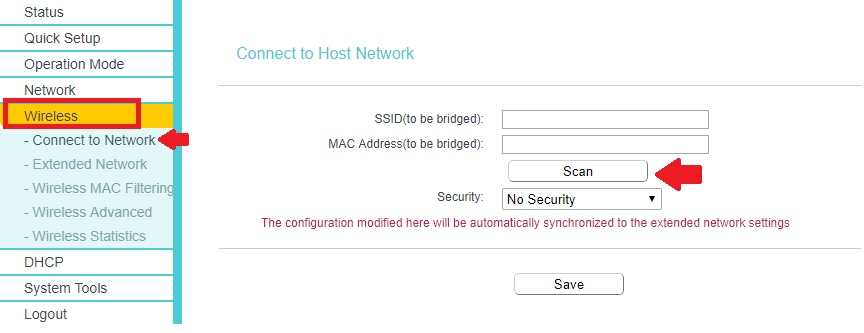

Go to Wireless- Connect to Network

Click Scan button and wait to get the list for wifi router running nearby.

Jual Router Repeater Wireless N TP-Link TL-WR840N 300Mbps

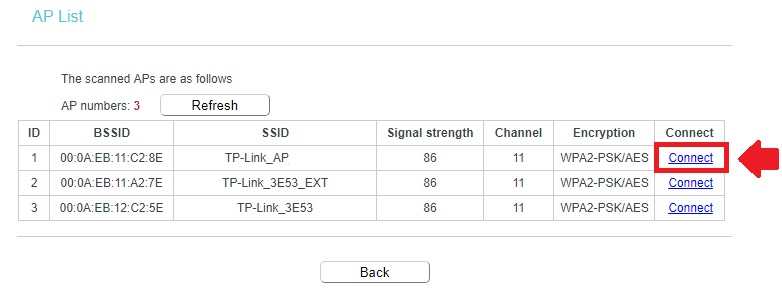

Select your WiFi name from the list and click Connect button

Setup Wireless REPEATER mode on TP-LINK TL-WR840N

You will get back to the wireless page where all settings fill automatically.

Provide host AP wifi password to allow connection from TP-link repeater device.

You should have your main internet modem wifi router password to join from repeater device.

Password: type password and press save button.

Create a wireless bridge with a cheap TP-Link router

Wait to finish saving of repeater settings.

You can confirm the range extender connection from the status page.



Setup Range Extender WiFi name and password

After repeater connection with wifi router now need to set up WiFi name for repeater wifi.

You can use the same name of host wifi name or can also use a different wifi name for repeater signals.

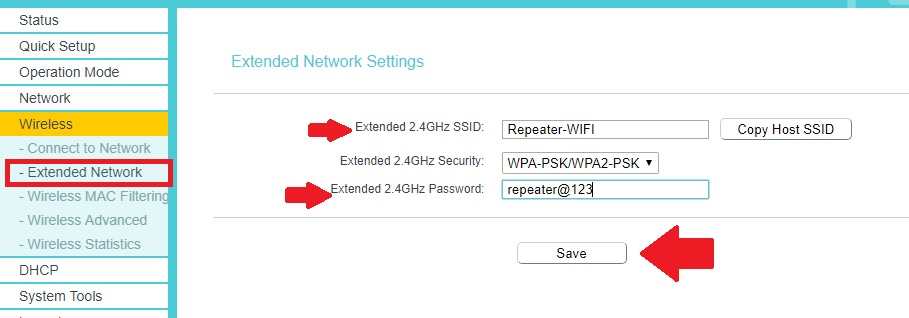

Go to Wireless – Extended Network

Extended Network Settings

Extended 2.4GHz SSID: type name for repeater (to use same name as main wifi click Copy host SSID)

tp-link wr841nd repeater mode

Extended 2.4 GHz Security: WPA-PSK/WPA2-PSK

Extended 2.4GHz Password: type password for range extender wifi name.

Click Save button to apply settings.



After setup up repeater mode in tp-link wifi router now placement is important to get proper signal as well as wifi speed.



TP-Link TL-WR840N Range extender Mode Placement

If facing low signal issue even after using repeater mode in wifi router then you need to think about placement.

Find a centralize placement position to get at least 45% signal from host AP and can provide an excellent signal in no signal area.

Do not cover range extender wifi router inside the cupboard and under the table.

Place repeater in top of the table or hang in the wall which can get signal without abstracted from main internet Wifi router.
