MSRM US750 WiFi Extender Setup

MSRM US750 750mbps WiFi Range Extender Setup to Boost WiFi Range

Msrm us750 750mbps wifi range extender to boost your WiFi signal range and internet speed to fix no coverage area without using any physical cable. MSRM US750 is a dual-band 750Mbps WiFi signal booster device that is compatible with most brands’ access points and easy to set up.

MSRM us750 750m dual-band wi-fi range extender is an indoor wall-plugged wifi repeater device that can be configured as an Access point, Range extender as well as Router. MSRM us750 repeater device setup is easy with the WPS button as well as login method from mobile or computer.

MSRM US750 750Mbps supports 2.4Ghz 300Mbps and 5Ghz 450Mbps Wireless speed that lets you extend your existing wifi range as well as increase wifi speed in low signal areas. MSRM 750 firmware is compatible with all brands of Wi-Fi access points and wifi routers such as Linksys, Netgear, TP-Link, Tenda, D-Link, and many other popular router brands

If you facing signal issues with your existing wifi router or you are not happy with your WiFi range extender due to low signal range or not stable wifi speed then you can try the MSRM US750 Dual-band Wi-Fi range extender. There are two ways to configure the MSRM range extender without login and with login from your mobile or computer. Follow the steps to set up the MSRM US750 Range extender device using the WPS button.

MSRM US750 750mbps Wifi Range Extender Using WPS Button

MSRM 750Mbps WiFi signal booster setup using WPS is a less than a minute process and it does not require login and wifi password for your existing wifi network. WPS method is a physical process so you are required to physically access the range extender and wifi router to process MSRM extender configurations.

How to Find Your Router IP Address

  • Unbox MSRM US750 Extender device if first time setup.
  • Plug into the power wall socket and power On it near your wifi router for configurations.

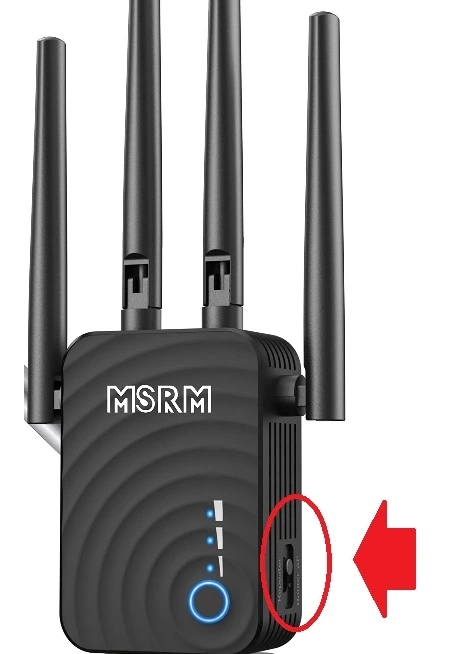

  • Move the side Wireless Mode button to the “Range extender” option to change extender mode.
  • MSRM WiFi Extender Setup, Reset & Update
  • BUY NOW
  • Now press the WPS button for 2 seconds in MSRM US750.
  • Within 2 minutes press the WPS button on the router for 2 seconds and release the button.
  • Extender devices take a few seconds to establish a connection with an existing wifi network and you will see all LED light solid greed.
  • Now check the WiFi signal on your phone or laptop you will see one more SSID name added in _Ext on your existing wifi name.  EXP- if your Existing wifi name is “HOMEWIFI” then the Extender WIFI name will be “HOMEWIFI_EXT“.
  • The WIFI password will be the same as your existing wifi password for the extender wifi name.
  • Unplug the MSRM US750 extender device and place it in the location where you facing the signal issue but avoid covering the extender device and putting it in an open area to get better connectivity from the host wifi router.

If WPS is not supported by your old wifi router and the MSRM US750 extender not connecting to your wifi router then follow the next way to setup the MSRM US750 extender using login methods.

Login to MSRM US750 range extender to setup from a Web browser

Login to MSRM US750 using the default login IP address and username password printed to the extender sticker for first-time setup. You can connect the Wi-Fi booster device either using a LAN cable from the device’s LAN port or a mobile device using the default SSID and password.

  • Unbox the range extender device connect to the power socket and power it On.
  • For LAN connection use a LAN cable from the repeater device Ethernet port bottom side to PC/Laptop.
  • Use default SSID/password to connect in default modem (Default SSID will be like- MSRM_EXT_XXX.
  • Open the web browser and access MSRM u750 default login IP address 192.168.10.1 to the URL bar.
  • You will get an MSRM range extender login page. Use “admin” as the default login username and password.
  • After login, you will be redirected to setup page or dashboard. Choose the “repeater” option under wireless mode and the next page will start scanning for the network automatically.
  • You will get a list of all wifi SSID names running around. Select your existing wifi name from the list and click the connect button.
  • Provide your existing wifi password to connect from the MSRM us750 repeater device.
  • The new booster SSID name will be your existing wifi name post forwarded by _EXT. if you want to use a different wifi name and password you can use your choice in the option Extender wifi name and password.
  • Once the setup process finishes extender device signal LED will be solid green after connecting with your wifi router.
  • Unplug the extender device and place it in the location where you facing the signal problem.



If facing any issue connection between MSRM US750 and the router’s existing wifi network, make sure you are using the correct wifi password and your router compatible with the MSRM extender device. If you trying to setup an old MSRM range extender that is already configured with a different wifi network then you need to factory reset MSRM US750 using the reset button to restore default settings.
